Self-Cleaning Metal Filters for Critical Operations
The original self-cleaning metal filter; now available in the U.S. exclusively through King Filtration.
Engineered for Uninterrupted Performance
Auto-Klean™ (formerly Cuno) filters deliver continuous, in-service cleaning, keeping your process running, your equipment protected, and your maintenance workload low.
Continuous, In-Service Cleaning
No Disposable Media
All Metal Construction
Decades of Service

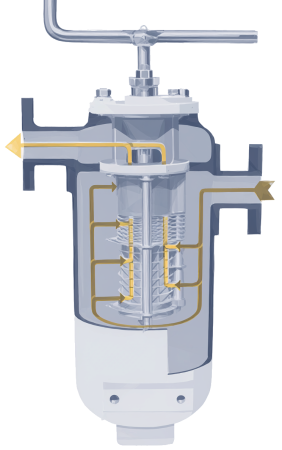

How Auto-Klean™ Works

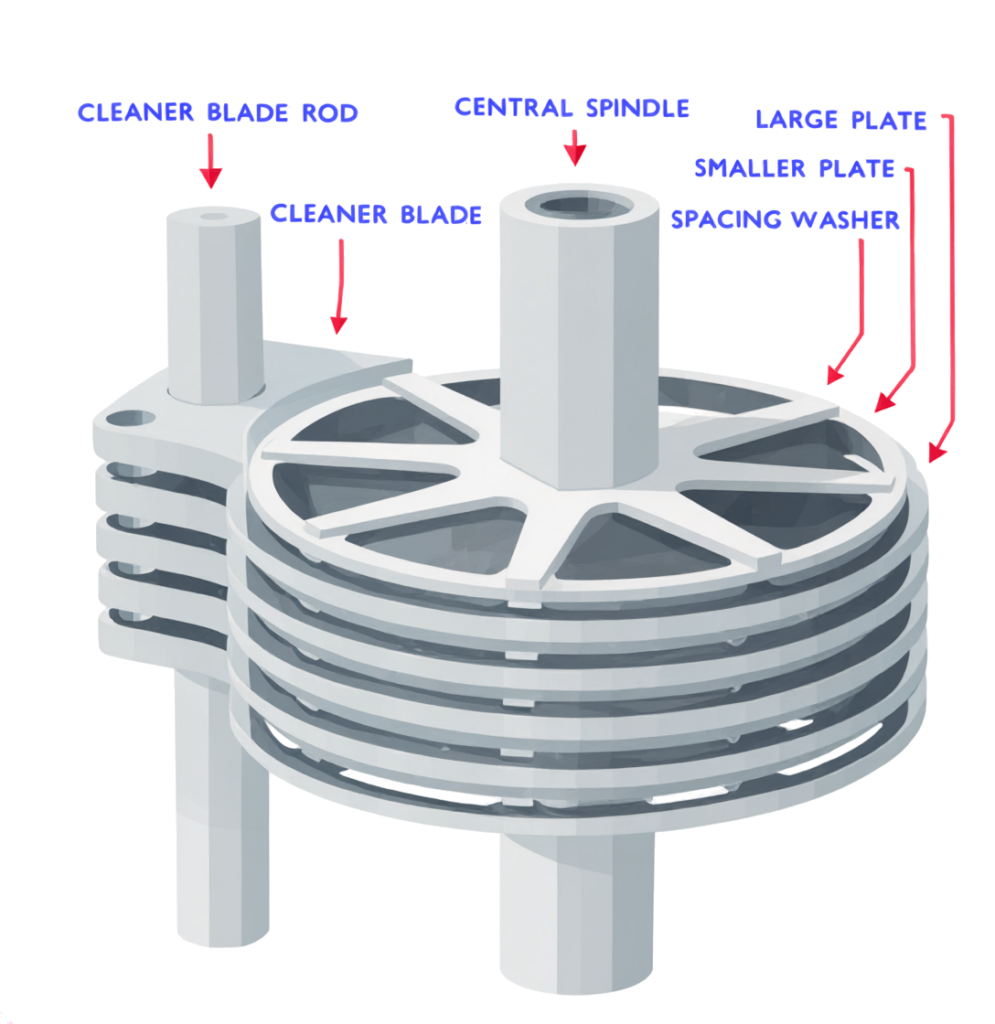

Auto-Klean™ filters use a precision metal disc stack to remove contaminants continuously while staying in service. Fluid flows through narrow slots formed by stacked discs and spacing washers, capturing solids down to 25 microns without disrupting flow.
1
Fluid Enters and Passes Through Precision Slots
Fluid flows from outside to inside through narrow slots formed by stacked metal discs and spacing washers.
Washer thickness sets the micron rating (filtration down to 25 microns).
2
Contaminants Are Captured on the Disc Edges
As the liquid moves through the slots, solids collect on the edges of the discs and around the cylindrical element, without interrupting flow.
3
Self-Cleaning Scrapes Solids Free
Turning the handle, or activating a motor drive, rotates the disc stack against fixed cleaning blades.
The blades scrape buildup from each slot and restore full flow while the filter remains online.
4
Debris Drops Into the Sump for Removal
Dislodged solids fall into the sump at the base of the filter.
Operators can remove accumulated debris through a drain plug or valve, manually or on a scheduled maintenance cycle.
Supported Models & Series
As the exclusive U.S. source for Auto-Klean™ products, King Filtration supplies legacy CUNO® models, modern Auto-Klean™ equivalents, and complete assemblies. Below is a representative list of filter bodies, cartridges, and assemblies we support.
Materials Available
Bodies & Covers:
- Cast Aluminium, Brass, Iron, and Stainless Steel
Internals:
- Aluminum, Brass, Carbon Steel, Stainless Steel
Need a Cartridge Conversion?
Send us your existing CUNO® or Auto-Klean™ model number and we’ll provide the correct modern replacement.
EG / EGS Series
EG: 11076, 12318, 12320
EGS: 12838, 12907
DDS Series
DDS: 13136
DDS Housing: (brass body)
Operating pressure: up to 250 psi
Uses three cartridge spacings (see Cartridge Tab)
DS Series
DS: 12706, 13106
G / GS / MG / MGS
G: 13018
GS: 13046
MG: 13138
MGS
GH Series
GH: 13158
GHS: 13159
GP Series
GP: 13087
KAT-A / KAT-F
KAT-A: 10041
KAT-F: 12202
MEG / MEGS Series
MEG: 14481
MEGS: 14482
MSV Vertical
MSV-1
MSV-2
MSV-3
MSV-4
EM / MEM Series
EM: 14396
EMS
MEM: 12287
MEMS: 12911
SM / MSM
SM: 14124
SMS: 12893
MSM: 12338
MSMS: 12893
SMD / MSMD Series
SMD: 10610
SMDS: 12274
MSMD: 12946
MSMDS: 12946
PM / MPM Series
PM: 11022
MPM: 15049
AK511 / MAK511 Series
AK511: 42065
MAK511: 42065
Auto-Klean® & Super Auto-Klean® Housing Units
Auto-Klean® and CUNO® housing units represent the full range of self-cleaning metal filter assemblies, including compact brass models, cast-iron and stainless steel units, high-pressure designs, multi-cartridge systems, and legacy specialty housings still supported by King Filtration.
AK Cartridge Series
- 4.4 AK: (12341)
EF / EFS / E / ES Cartridge Series
- EF: (11404)
- EFS: (14367)
- E
- ES
EG / EGS Cartridge Series
- EG Elements: 14145
- EGS Elements: 12840
- EGF
- EGFS
- EGF-1: (12347)
- EGSF-1: (12903)
- EGF-2: (12350)
- EGSF-2: (12936)
- EGF-3: (12353)
- EGSF-3: (12937)
EM / MEM
- EM: (14147)
- MEM: (12840)
KAT Cartridge Series
KAT-E (12357)
KATS-E (13057)
KBT Cartridge Series
- KBT-F (12366)
- KBTS-F (14005)
Auto-Klean® & Super Auto-Klean® Cartridge Units
Auto-Klean® cartridge units include all replaceable internal disc-stack filter elements, both modern catalog-numbered elements and legacy letter-coded series, providing complete coverage for every housing family listed in the Auto-Klean® product range.
Vertical SV / MSV Units
- SV-1
- MSV-1
- MSV-2
- MSV-3
- MSV-4
Motor Drives
- Electric motor drives (single- or three-phase)
- Pneumatic or hydraulic motor drives
- Differential-pressure or timer-initiated cleaning cycles
Gearhead Motors
Motor + gearbox assemblies for slow, controlled cleaning rotation
Available for G / EG / EGS / EM / MSV and other series
Designed for continuous duty in industrial environments
Manual Drive & Mechanism Components
Handwheel / handle assemblies for manual cleaning
Cleaner blade rods and cleaner blades
Central spindle and disc stack assemblies
Sump drain plugs and valves
Other Auto-Klean® and Legacy CUNO® Products
This section covers all additional Auto-Klean® and legacy CUNO® components and specialty offerings, including vertical MSV units, motorized drive systems, gearhead assemblies, and service parts.
Handles a Wide Range of Fluids
Engineered specifically for processes that demand stable flow and consistent cleanliness, Auto-Klean™ filters are compatible with:
Heavy oils
Turbine oils, compressor oils, hydraulic oils, diesel and marine fuel oils
Resins & Polymers
Process resins, polymers, coatings, viscous high-load materials
Food-grade Liquids
Edible oils, syrups, honeys, food processing shortenings
Process Water & Cooling Liquids
Plant water systems, cooling loops, wash-down or utility water
Solvents & Chemical Process Fluids
Industrial solvents, process liquids, light hydrocarbons
Adhesives, Waxes & High-Viscosity
Adhesives, waxes, gels, semi-solid process materials
Industries Served
Power Generation
Nuclear
Chemical / Petrochemical
Gas & Refining
Food & Beverage
Marine / Heavy Industry
Talk to an Auto-Klean™ Specialist
Need support with an Auto-Klean™ filter or a legacy CUNO® model?
Send us your details and our filtration specialists will help you identify the correct housing, cartridge, or conversion path for your application.
Q&A
Your Questions About Auto-Klean, Answered.
How do I identify which Auto-Klean™ or legacy CUNO® model I have?
Most Auto-Klean™ and CUNO® housings look similar, and nameplates are often worn or missing, so the fastest way to identify your model is to match disc diameter, cartridge length, spacing code, sump shape, and inlet/outlet size.
If you have only a cartridge part number (e.g., 13131-07-50-0080 or 14145-17-50-0030), the corresponding housing can be determined directly.
How King Filtration helps:
King provides free model verification, even from a photo of the nameplate, element, or housing, and confirms the exact cartridge, housing series, and modern equivalent before you order.
Which cartridge spacing (0030, 0050, 0080, 0120, etc.) should I be using?
Spacing determines micron rating, system backpressure, and solids-handling efficiency. Too fine a spacing causes unnecessary pressure drop; too coarse reduces protection. Many operators use the wrong spacing because the original spec was lost.
How King Filtration helps:
Our team reviews your application—fluid type, viscosity, contaminant load, pressure requirements—and recommends the correct spacing code so the filter stays in service longer while maintaining equipment protection.
Can Auto-Klean™ filters replace disposable basket or cartridge filters?
Yes. Auto-Klean units are specifically designed for continuous operation without shutdown, using an all-metal, cleanable element. This eliminates routine element replacement, reduces waste, and stabilizes system pressure.
King Filtration performs conversion support, matching your current disposable filter’s flow rate, pressure tolerance, and micron rating to the appropriate Auto-Klean housing and element.
How do I know when my Auto-Klean™ element needs cleaning or replacement?
Typical signs include rising differential pressure, reduced flow, harder-than-normal handwheel rotation, or visible fouling in the sump. However, cleaning intervals vary widely depending on fluid type and contaminant load.
King Filtration can help you determine the correct cleaning interval, evaluate whether you need a motorized drive, and supply replacement cartridges for worn elements.
What fluids can Auto-Klean™ filters handle?
Auto-Klean filters support oils, resins, fuels, process chemicals, steam condensate, viscous fluids, high-temperature fluids, and water-like media, depending on the housing and spacing selected.
King Filtration experts can verify chemical compatibility, metallurgy, spacing, and temperature ratings based on your application, ensuring long-term performance and safety.
What should I do if my existing Auto-Klean™ or CUNO® model is obsolete?
Many legacy models, SM, SMS, KAT-A, KAT-F, PM, MPM, AK511, 4.4 AK, MSV, have no current catalogs, but their functional equivalents still exist.
King Filtration provides 1:1 conversion paths, identify compatible modern housings and elements, and confirm connection sizes and spacing codes, preventing costly trial-and-error.
